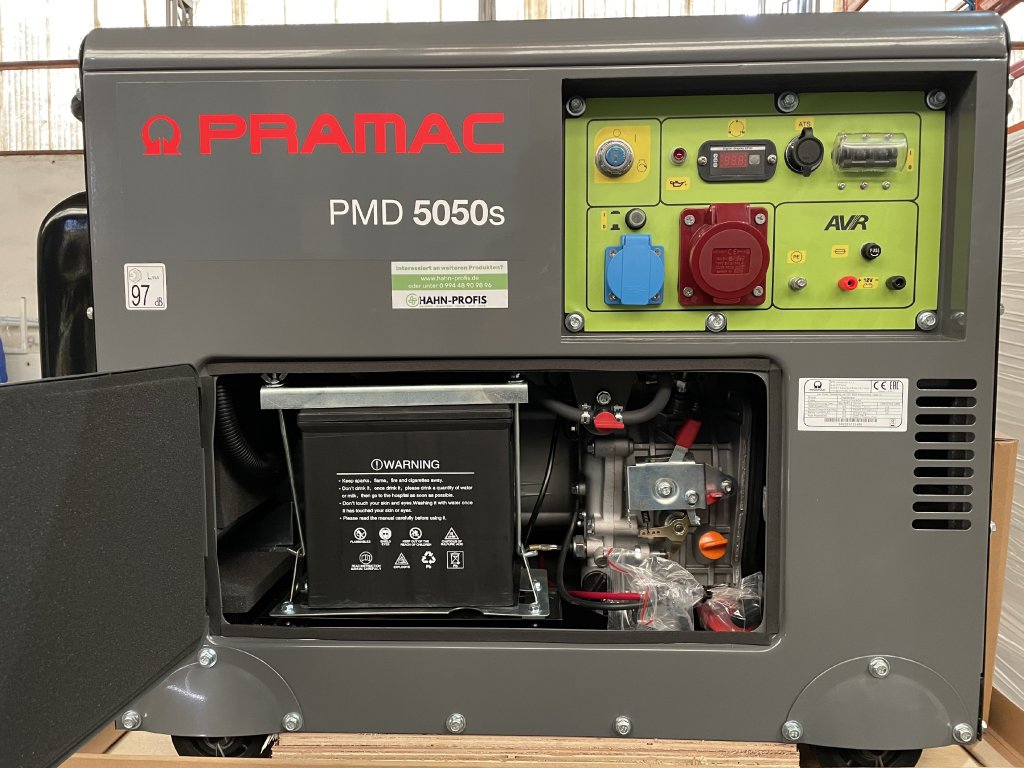

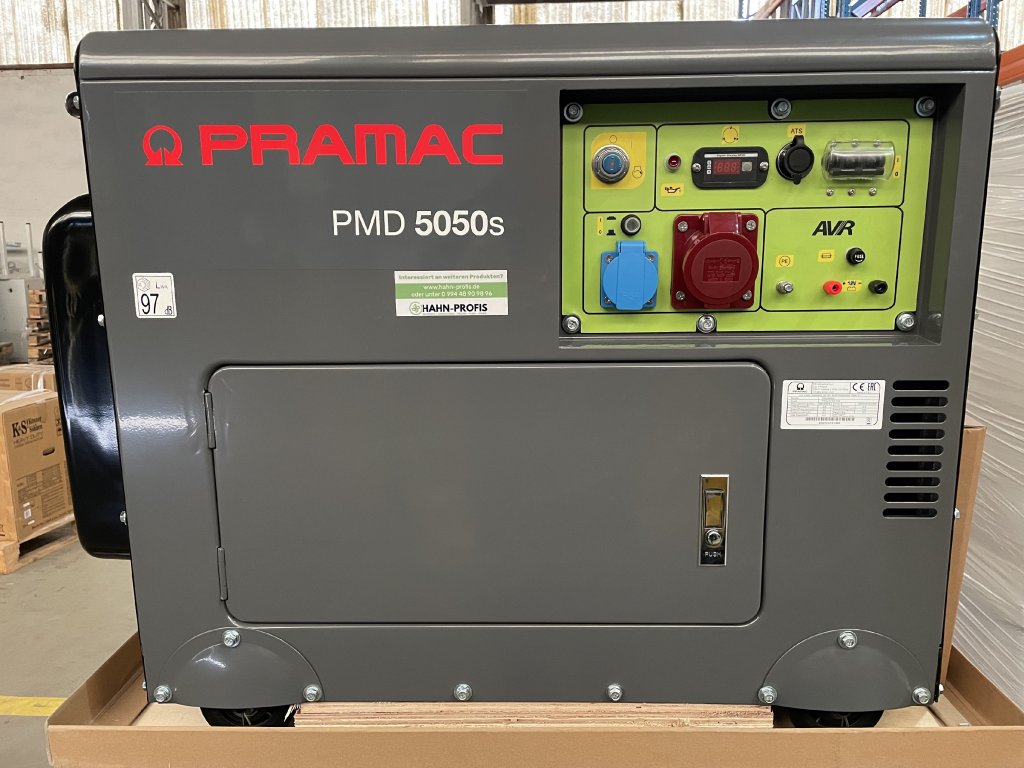

Pramac Diesel Generator PMD 5050S
Diesel and soundproof motorisation guarantee reliability with low running costs and maximum comfort. Handle and wheels allow easy movement and transport. The power plant is equipped with a large fuel tank that allows for long continuous operation. A built-in digital multimeter allows for scheduled maintenance intervals and ensures optimum operating condition of the power generator. An automatic voltage regulator (AVR) ensures voltage stability. Power Coating helps prevent corrosion in all weather conditions.
Pramac Diesel Generator PMD 5050S
EQUIPMENT
- OHV engine for constant power even during load changes
- Fuel type: Diesel
- Starting system: Electric (with battery)
- Automatic shutdown when oil level is low protects the engine against damage
- Digital multifunction display - fuel gauge
- AVR automatic voltage regulator
- 4 wheels integrated for easy transport
- Crane loading eye
SOCKETS
- SCHUKO 230V 16A IP44 1 - 1 x
- 3P+N+T CEE 400V 16A IP44 - 1 x

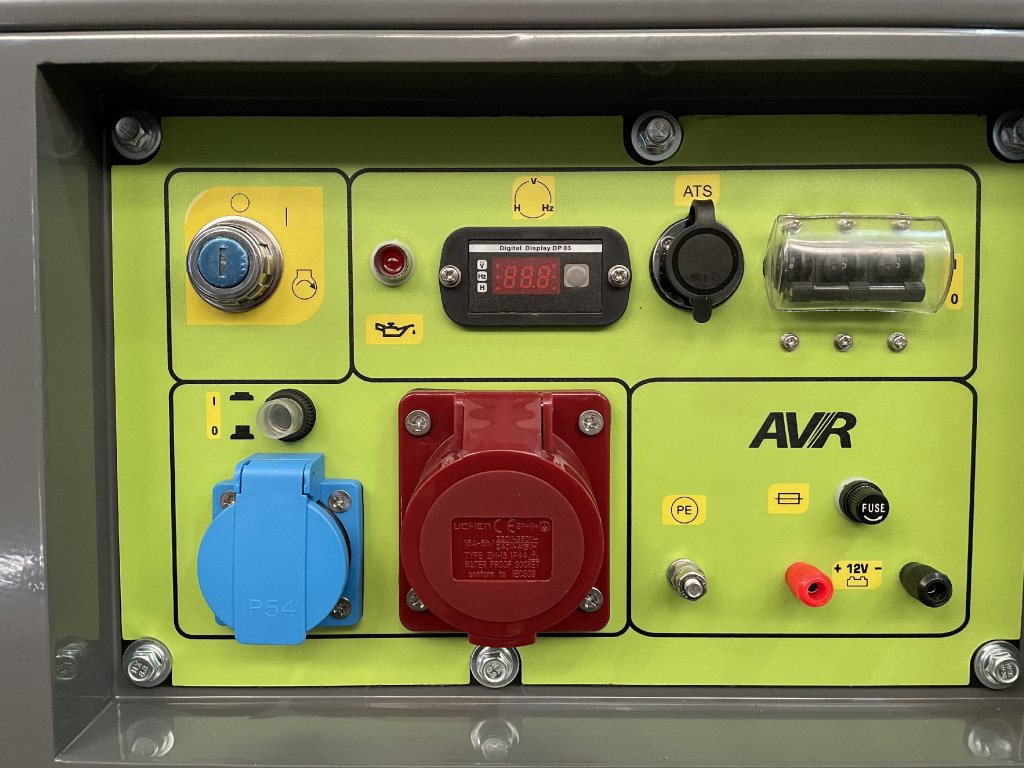

CONTROL PANEL
Mounted on the generator for: display, control and protection of the generator as well as for the sockets
CONTROL:
● Key switch: OFF - ON - START
DISPLAY:
● Voltmeter
● Operating hours meter
● Frequency meter
● Fuel gauge
PROTECTION:
● Thermo-magnetic circuit breaker
● Oil monitoring (with lamp)
● Thermal fuse 9A (12V DC)
ADDITIONAL SOCKET:
● 12V DC
Additional parameters
| Category: | Generators |
|---|---|
| Weight: | 185 kg |
| Jmenovitý výkon: | 3,6 kW |
| Maximální výkon: | 4,0 kW |
| Napětí: | 230 V |
| Startér: | Elektrický |
| Kapacita palivové nádrže: | 14,5 l |
| Frekvence, Hz: | 50 |
| Výrobce motoru: | Pramac |
| Uspořádání ventilů: | OHV |
| Provozní otáčky motoru, ot./min: | 3000 |
| Start motoru: | elektrický |
| Objem olejové mísy, l: | 1,65 |
| Systém regulace napětí: | AVR |
| Délka (D), mm: | 910 |
| Šířka (Š), mm: | 518 |
| Výška (V), mm: | 682 |
| Rozměry krabice DxŠxV, mm: | 950x570x765 |
| Spotřeba paliva při 50% zátěži, l/h: | 1,28 |
| Doba provozu při 50 %, h: | 11,3 |
| Maximální garantovaná hladina hluku (LWA), dB(A): | 97 |
| Hladina hluku ve vzdálenosti 7 m při normálním zatížení, dB(A): | 69 |
