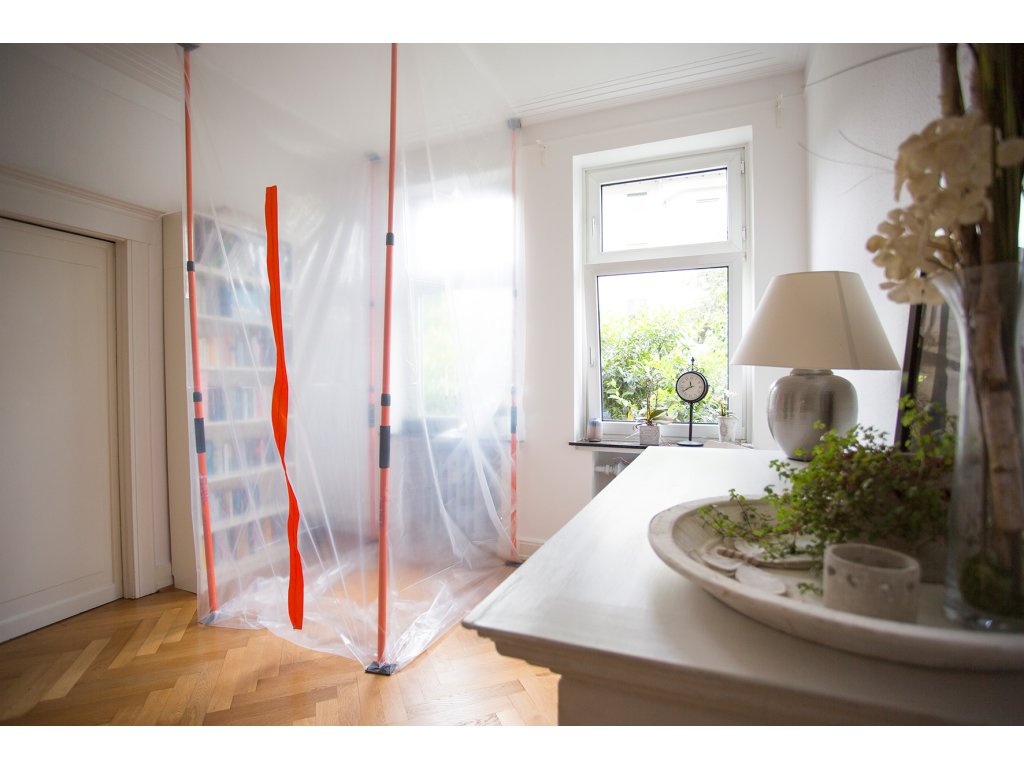

Dustproof wall HEYLO HEYWALL (basic package plus)

Dustproof wall HEYLO HEYWALL (basic package plus)

HEAYWALL basic package includes:

• 4 pull-out system bars (up to 3.60 m high) including main and foot plates
• 4 angle adapters
• 2 zippers
• 4 side clamps
• 4 sealing strips including ceiling clamps
• 1 carrier bag

USAGE

• For clean rooms during renovation and modernisation. No cleaning required after the work is completed.
• Renovation, modernization, demolition and dismantling works, construction and concrete works

FEATURES

• Time-saving installation and removal without time-consuming covering/masking of doors, windows and furniture
• Flexible modular system - individual modules for different applications
• A workspace that is sealed with no cleaning required
• No tools are needed and setup takes minutes
• Easy installation without ladder
• Can be set as a room divider (L or U shape) or as a polygon. All angles can be used
• For ceiling heights up to 3.60 m

Modules for HEYWALL

Extendable system rails made of aluminium including main and foot plates: Attach the main and foot plates to the system rail. Clamp the foil to the top plate. Then tighten the system bar to the desired length between the floor and ceiling.
Sealing strips including ceiling clamps: for use on ceilings use sealing strip and ceiling clamps; for wall closure use sealing strip with side clamp.
Side clamps: together with the sealing strips, they close the wall. First attach the side clamp to the sealing rail. Then attach the sealing rail and the side clamp to the system rail at the appropriate height.
Angle adapter: for fixing the system bars to sloping walls. Screw the angle adapter onto the system bar and then screw the main plate onto the angle adapter. Then clamp the system bar between the floor and the angled wall.
Self-adhesive zippers: for application on plastic film. For easy entry and exit from the construction site. Apply the zipper and cut the foil to create a passageway.
Transport bag: bag with robust zipper for stable transport and handling and integrated accessory bag. Internal and external washable surface.
Quick-release adaptor for system columns: the spring-loaded adaptor is screwed onto the system column and is used to facilitate the clamping of the columns between the floor and the ceiling. The system column can be extended by 140 cm by screwing it to the extendable system column.
