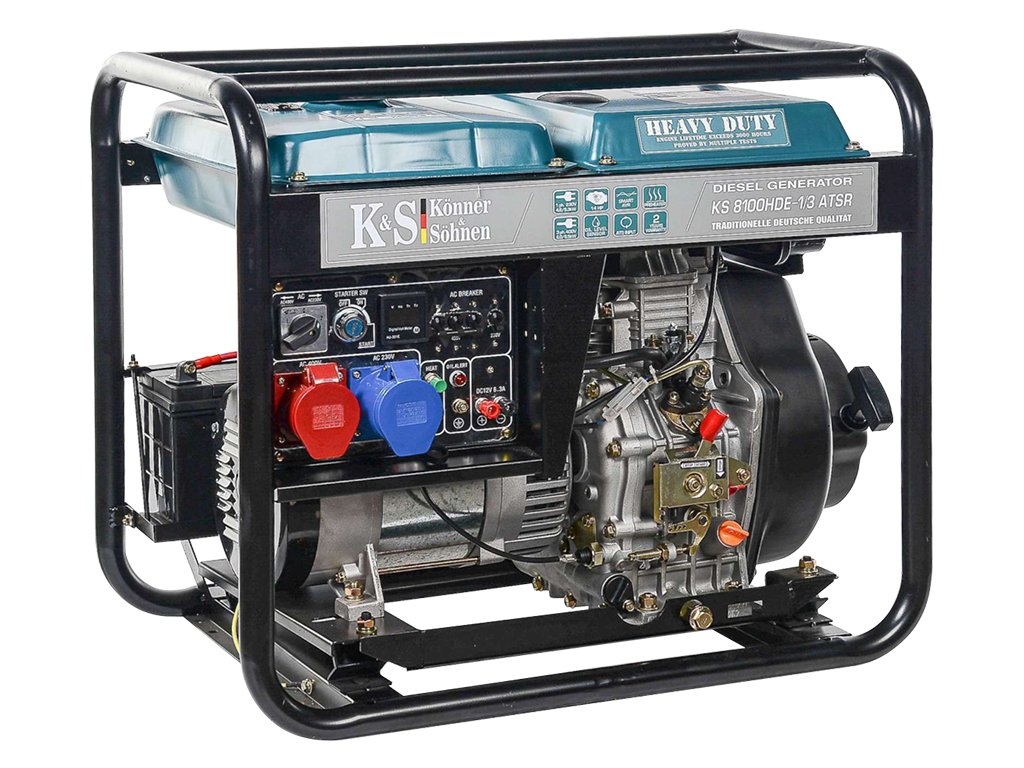

Könner & Söhnen Diesel Generator KS 8100HDE 1/3 ATSR
| Voltage | 230/400 V |
| Maximum power/ Nominal power 230V |
5.5/5.0 kW |
| Maximum power/ Nominal power 400V |
6.5/6.0 kW |
| Power output | 14 hp |
| Batterry | 30 Ah |
| Start | Manual/Electric |
| Type of engine | Diesel |
| Sockets | 1x32A (230V), 1x16A (400V) |
| Hausing volume | 1.65 l |
| Net weight | 117 kg |
| Frequency | 50 Hz |
Könner & Söhnen Diesel Generator KS 8100HDE 1/3 ATSR
The KS 8100HDE 1/3 ATSR (EURO V) is a powerful diesel power plant of the HEAVY DUTY series, which boasts a robust reinforced construction that protects the tank from damage even during transport. It is equipped with a powerful Könner & Söhnen branded engine that can be used not only as a backup power source but also for continuous operation. Among other things, the power plant is equipped with a preheater, which makes it easy to start the power plant even in winter. The intelligent AVR stabilisation system allows the 230 V voltage to be kept constant and thus protects the power station against unwanted short circuits. This model is also equipped with the VTS phase switching system, which eliminates the need to buy two separate power units. This system can easily switch between the phases - 230 V (single phase mode) and 400 V (three phase mode).
BRAND ENGINES
Just as for petrol generators, engines for diesel generators are manufactured under licence from DIMAX Int. and carry their own brand and logo. For all models, the power reserve of the engine compared to the generator allows it to produce the specified voltage and keep it stable over the entire voltage range. All engines are tested for long continuous operation and then dismantled and inspected for faults. Each engine and generator has an individual serial number. This allows us to monitor the production or service quality. The engines meet all world or European standards for quality, economy and environmental friendliness (especially for pollutant and noise levels).
Universal generators 2-in-1 feature a unique Voltage Transfer Switch (VTS) system that allows a generator to be used in both single-phase (230 V) and three-phase (400 V) modes with virtually no loss of power. Each mode has its own circuit breakers. It is not necessary to buy two separate generators for single-phase and three-phase loads.
ATS CONNECTION
The ATS unit (automatic transfer to emergency power) automatically starts the generator and transfers the load when the main power supply is interrupted, and automatically stops the generator when the main power supply is restored.
HEAVY DUTY diesel generators are not only suitable as a back-up power source, but also for full continuous operation. The engine life is more than 3000 operating hours, which is confirmed by multi-hour or -stage tests and a warranty. However, the motors are of course as powerful as this when properly operated and routinely maintained.
USER-FRIENDLY ERGONOMIC CONTROL PANEL
The user-friendly ergonomic control panel allows you to easily operate the entire group, requiring no additional skills. A modern intelligent LED display will always show you the operating hours, frequency or voltage values. The information displayed will help you to properly assess the charge on the unit and perform the maintenance of the generator on time, thus extending the life of the unit.
All HEAVY DUTY diesel generators are equipped with a preheating function (PREHEATER), which allows you to start the generator effortlessly in winter.
AVR
FRAME REINFORCEMENT
Thanks to the additional frame reinforcement with the upper protection strips, the HEAVY DUTY generator of professional series can be operated in heavy duty conditions. Furthermore, the frame construction ensures the fuel tank additional protection against damage during operation and transport.
RUBBER PADS FOR FRAME PROTECTION
ADDITIONAL ACCESSORIES
The generator is equipped with additional accessories: the transition plug 3Р+Е+N 16A 400V, transition plug 2P+Е 32A 230V, open-end spanner 8×10 mm, open-end spanner 12×14 mm, open-end spanner 17×19 mm, offset screwdriver 6.0 mm, РН2.
Additional parameters
| Category: | Generators |
|---|---|
| Weight: | 130 kg |
| Hmotnost: | 121 - 180kg |
| Jmenovitý výkon: | 5,1 - 7 kW |
| Maximální výkon: | 4,7 - 7,6 kW |
| Napětí: | 230/400 V |
| Startér: | Ruční/elektrický |
| Napětí, V: | 230/400 |
| Max. výkon/jmenovitý výkon 230V, kW: | 5.5/5.0 |
| Max. výkon/jmenovitý výkon 400V, kW: | 6.5/6.0 |
| Frekvence, Hz: | 50 |
| Proud, A (max.): | 23.04/11.74 |
| Zásuvky: | 1x16A (400V), 1x32A (230V) |
| Průměrná pracovní doba (výkon 50%), h: | 12 |
| LED displej: | napětí, frekvence, pracovní doba |
| Úroveň hluku LPA (7m)/LWA, dB: | 71/96 |
| Zásuvka 12 V, А: | 12/8.3 |
| Model motoru: | KS 480HD |
| Typ motoru: | Diesel, jednoválcový, čtyřtaktní, vzduchem chlazený |
| Výkon motoru, HP/kW: | 14.0/10.3 |
| Objem olejové jímky, l: | 1.65 |
| Objem válce motoru, cm3: | 456 |
| Regulátor výstupního výkonu: | AVR |
| Start motoru: | ruční/elektrický |
| Faktor síly, cos φ: | 1.0/0.8 |
| Průměr rámu: | 32 mm, kulatý |
| Akumulátor, Ah: | 30 |
| ATS výstup: | + |
| Předehřívač: | + |
| Čisté rozměry (D*Š*V), mm: | 730×495×630 |
| Hrubé rozměry (D*Š*V), mm: | 750x550x670 |
| Čistá hmotnost, kg: | 117 |
| Hrubá hmotnost, kg: | 125 |
| Ochranná třída: | IP23M |
| Hmotnost baterie: | 7,8 kg |
Elektrický start
Ruční start
Spuštění naftové elektrocentrály
