Könner & Söhnen Diesel generator KS 14-1DE ATSR
| Voltage | 230 V |
| Maximum power 230V | 11.0 kW |
| Nominal power 230V | 10.5 kW |
| Engine power | 21 hp |
| Engine start | Electric |
| Type of engine | Diesel |
| Model of engine | KS 1020HD |
| Sockets | 1x63A 1x32A 2x16A |
| Fuel tank volume | 30 l |
| Battery | 45 Ah |
| Net weight | 220 kg |
| Frequency | 50 Hz |

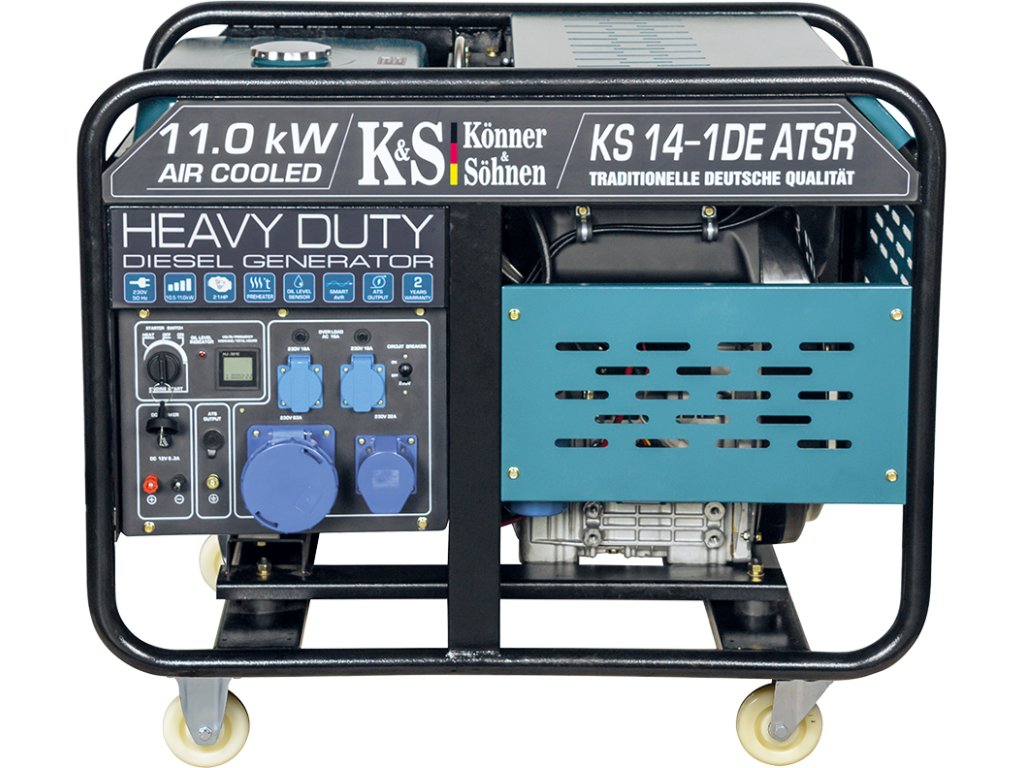

Diesel Generator KS 14-1DE ATSR
The KS 14-1DEW ATSR HEAVY DUTY series diesel generator is equipped with a high-performance twin-cylinder engine that reduces vibrations during operation. The generator is also equipped with a preheater that allows easy starting of the generator even in winter and an outlet for the ATS system. In addition, this power pack is equipped with a transport kit that allows easy transportation of the power pack.
HIGH-PERFORMANCE TWO-CYLINDER ENGINE
Powerful and robust two-cylinder, air-cooled, four-stroke engine (21 hp). The engine design, with the cylinders arranged in a row, is optimally designed to reduce vibrations during operation.
MULTIFUNCTIONAL LED DISPLAY
The modern multifunctional LED display shows the frequency, voltage and operating hours of the generator. The information displayed makes it easy to determine the voltage controlled by the unit.
PREHEATER
All HEAVY DUTY diesel generators are equipped with a preheating function (PREHEATER), which allows you to start the generator effortlessly in winter.
Suitable ATS - KS 4/63
The ATS unit (automatic transfer to emergency power) automatically starts the generator and transfers the load when the main power supply is interrupted and automatically stops the generator as soon as the main power supply is restored.
* not included in the scope of delivery
STEEL CONTAINER
"Könner & Söhnen" generators are equipped with an enlarged steel fuel tank, which extends the operating time per tank filling. For ease of monitoring, the fuel gauge is located on the fuel tank.
Additional parameters
| Category: | Generators |
|---|---|
| Weight: | 220 kg |
| Hmotnost: | 181 - 240kg |
| Jmenovitý výkon: | 9,1 - 11 kW |
| ? Kapacita palivové nádrže: | 20,1 - 30 l |
| Maximální výkon: | 9,7 - 12,6 kW |
| Napětí: | 230 V |
| Startér: | Elektrický |
| Napětí, V: | 230 |
| Max. výkon, kW: | 11.00 kW |
| Jmenovitý výkon, kW: | 10.5 kW |
| Frekvence, Hz: | 50 |
| Proud, A (max.): | 47.83 |
| Zásuvky: | 2x16A / 1x32A / 1x63A |
| LED displej: | napětí, frekvence, pracovní doba |
| Objem palivové nádrže, l: | 30 |
| Úroveň hluku Lpa (7m)/Lwa, dB: | 74/99 |
| Zásuvka 12 V, А: | 12/8.3 |
| Model motoru: | KS 1020HD |
| Výkon motoru, HP/kW: | 21 |
| Objem olejové nádrže: | 2.8 |
| Objem válce motoru, cm3: | 997 |
| Regulátor výstupního výkonu: | AVR |
| Start motoru: | elektrický |
| Předehřívač paliva: | + |
| Akumulátor, Ah: | 36 |
| ATS výstup: | + |
| Čisté rozměry (D*Š*V), mm: | 1050x640x700 |
| Hrubé rozměry (D*Š*V), mm: | 1100x680x820 |
| Čistá hmotnost, kg: | 220 |
| Hrubá hmotnost, kg: | 240 |
| Ochranná třída: | IP23M |
Elektrický start
Spuštění naftové elektrocentrály
