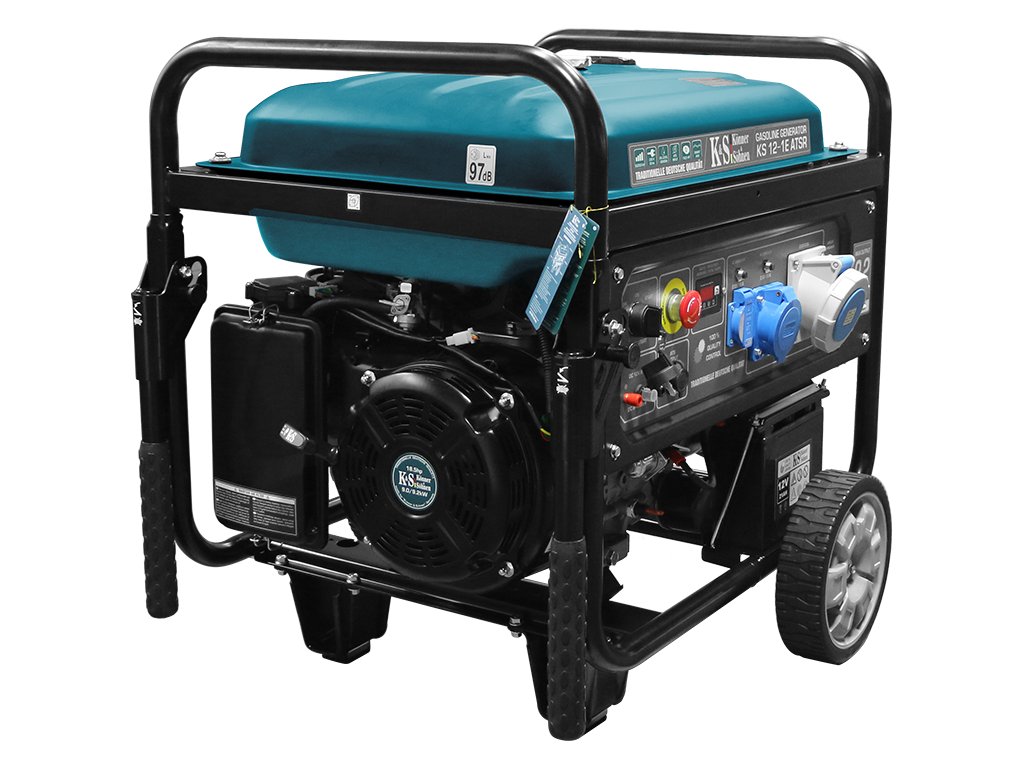

Könner & Söhnen Gasoline Generator KS 12-1E ATSR
| Maximum power | 9.2 kW |
| Nominal power | 9.0 kW |
| Engine output | 18.5 hp |
| Engine start | Manual/Electric |
| Fuel | Gasoline |
| Model of engine | KS 650 |
| Sockets | 1×63A(230V) 1×32A(230V) 1×16A(230V) |
| Fuel tank volume | 55 l |
| Crankcase volume | 1.4 l |
| Net weight | 131 kg |
| Voltage | 230 V |
| Frequency | 50 Hz |
Könner & Söhnen Gasoline Generator KS 12-1E ATSR
The KS 12-1E ATSR petrol power generator achieves maximum performance with one cylinder. It is equipped with a user-friendly ergonomic
control panel with an emergency stop button and a multi-function LED display that allows you to monitor the operation of the generator.
The KS 12-1E ATSR petrol generator offers maximum power with one cylinder!
The generator is suitable for connecting an ATS (Automatic Transfer Switch) unit. A user-friendly ergonomic control panel with a generator emergency stop button and a multifunctional LED display allows monitoring of generator operation: voltage, frequency, operating hours and oil level. This model is equipped with sockets for complete draw-off of the current generated by the generator. These sockets are equipped with fuses and fitted with suitable plugs. The large fuel tank with a volume of 55 l ensures long and continuous operation.
POWERFUL ENGINE
Powerful and robust single-cylinder air-cooled four-stroke engine (18.5 hp). Each engine meets European and international standards for quality, economy and environmental friendliness (including pollutant emissions and noise pollution).
FLUENT AND CONVENIENT START SYSTEM
The simplified starting system allows the engine to start quickly without any significant effort. The more powerful models are additionally equipped with an electric and/or self-starting system for convenience.
ERGONOMIC CONTROL PANEL
The user-friendly ergonomic control panel allows easy control of the entire unit, does not require any special skills and is equipped with sockets for complete draw-off of the power generated by the generator. Each socket is equipped with a corresponding plug. Emergency stop button.
ATS CONNECTION - KS ATS 4/32-12
The ATS (Automatic Transfer Switch) unit automatically starts the power station and transfers the load to it when the main power supply is disconnected and automatically stops the power station when the central power supply is restored.
STEEL CONTAINER
"Könner & Söhnen generators are equipped with an enlarged steel fuel tank, which increases the operating time per tank filling. The fuel gauge is located on the fuel tank for easier handling.
Operation manual
Additional parameters
| Category: | Generators |
|---|---|
| Weight: | 131 kg |
| Hmotnost: | 121 - 180kg |
| Jmenovitý výkon: | 7,1 - 9 kW |
| ? Kapacita palivové nádrže: | 50,1 - 60 l |
| Maximální výkon: | 7,7 - 9,6 kW |
| Napětí: | 230 V |
| Startér: | Ruční/elektrický |
| Napětí, V: | 230 |
| Max. výkon, kW: | 9.2 |
| Jmenovitý výkon, kW: | 9.0 |
| Frekvence, Hz: | 50 |
| Proud, A (max): | 40 |
| Zásuvky: | 1×63A(230V)/1×32A(230V)/1×16A(230V) |
| Objem palivové nádrže, l: | 55 |
| LED displej: | napětí, frekvence, pracovní doba, alarm oleje |
| Úroveň hluku Lpa (7m)/Lwa, dB: | 71/96 |
| Výstupní výkon DC, V/А: | 12/8.3 |
| Model motoru: | KS 650 |
| Typ motoru: | benzínový, jednoválcový, čtyřtaktní, vzduchem chlazený |
| Výkon motoru, hp/kW: | 18.5/13.6 |
| Objem olejové jímky, l: | 1.4 |
| Objem válce motoru, cm3: | 625 |
| Regulátor výstupního výkonu: | Inteligentní stabilizační systém napětí AVR |
| Start motoru: | ruční/elektrický |
| Faktor síly, cos φ: | 1 |
| Čisté rozměry (D*Š*V), mm: | 790×705×680 |
| Hrubé rozměry (D*Š*V), mm: | 800×715×780 |
| Čistá hmotnost, kg: | 131 |
| Hrubá hmotnost, kg: | 145 |
| Akumulátor, Ah: | 21 |
| Ochranná třída: | IP23M |
| Hmotnost baterie: | 7,8 kg |
Elektrický start
Ruční start
Spuštění benzínové elektrocentrály
