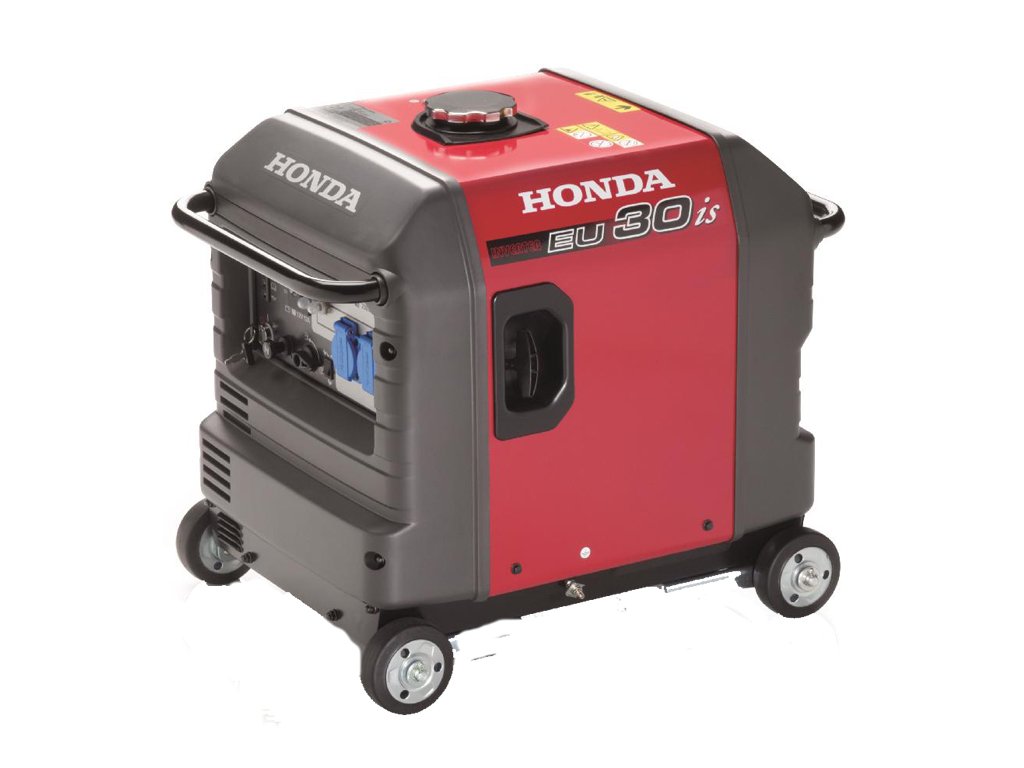

Inverter Generator Honda EU30IS

The EU 30iS hooded, sound-proof power unit: the model of a very quiet, single-phase power unit with inverter. The patented inverter technology has enabled Honda to produce a compact and lightweight generator of small size but high performance with a fine-tuned and stable output voltage waveform using precision electronics. The powerful alternator drives a professional GX 200 series industrial engine with electric starter, all neatly "wrapped" in an attractive design with a thoroughly soundproof fairing.

WORKS QUIETLY AND DOES NOT PROTEST

This perfectly soundproofed gasoline AC power generator is designed with its power and output voltage quality mainly for powering small to medium-sized appliances such as lighting, hand-held power tools, monitors, computers, camera systems or devices with very sensitive electronics. Its compact size makes it suitable for emergency vehicles, repair, measuring or monitoring vehicles for field work, as well as for powering various appliances in the garden, workshop, home or cottage, boat or caravan. The entire unit is mounted on flexible silent blocks in a rigid frame and is completely "wrapped" in a thoroughly soundproofed fairing. Due to the weight, a wheeled handling chassis is integrated into the frame with handling handles on both sides of the power pack. The transport and handling of the power generator can thus be handled even by a less physically fit user. The motor is controlled by an electronic control unit that precisely doses the motor power depending on the power consumption. This significantly reduces fuel consumption and noise levels. On the other hand, the operating time per refuelling and the lifetime of the power generator are considerably extended. The power generator also provides a DC voltage of 12V for charging car batteries. For this it is necessary to purchase a special charging cable. The control of the power pack is very easy and simple. On the control panel of the ECU you will find, in addition to two Schuko sockets (16A 230V) with thermal fuses, also a socket for 12V, 12A with thermal fuse, running (green) and lubrication (red) indicator light, overload indicator light (red), sockets for the connection cable for the phasing with the second ECU, choke control rod, ignition key and switch for the ECO-THROTTLE automatic engine control mode. Simply fill the tank, place the power unit on a level surface, start by turning the ignition key, wait a few seconds for the engine to settle and connect the powered appliance to the appropriate socket. The power pack meets all electrical safety requirements and is equipped with protective features such as oil leakage protection for the engine and overload protection for the alternator. In the event of an overload of the power pack, the red overload warning light on the control panel is activated and the electrical output is automatically disconnected while the engine is running continuously. Simply disconnect the appliance, switch off the engine and restart the engine after a few seconds. The control unit is "reset" and everything is fine again. Do not use the appliance that has overloaded the power unit and use an appliance with an input power corresponding to the power of the power unit. However, it is possible to connect two identical EU30iS power packs using a special cable to double the possible power supply capacity. The frame of the power unit is sufficiently robust and solid, does not twist and reliably absorbs the vibrations from the machine to the substrate. This reduces the noise level of the power pack and makes work more pleasant. Maintenance of the power tool is quite simple and consists of basic maintenance of the gasoline engine.

TECHNICAL PARAMETERS

• Sound pressure level at the point of operation - dB(A) - 74
• Machine measurements (L x W x H) (mm) - 658 x 482 x 570
• Starting - Manual / Electric
• Electrical output - 230V / 50Hz
• Maximum performance (VA) - 3000
• Electric output control technology - Inverter with PWM (Pulse Width Modulation)
• DC output - 12 V / 12 A
• Fuel tank volume (l) - 13
• Operating time at rated load (hour) - 8
• Engine model - GX 200
• Dry weight (kg) - 61,2
• IP code - IP 23
• Guaranteed noise level - dB(A) - 91
• Ignition system - Transistor contactless
• Bore and stroke (mm) - 68 x 54
• Type of power generator - Single-phase
• Cooling - Air
• Rated current (A) - 12,2
• Nominal frequency (Hz) - 50
• Nominal voltage (V) - 230
• Nominal power (VA) - 2800
• Stroke volume (cm³) - 196
• Oil filling volume (l) - 0,55
• Engine type - 4-stroke single-cylinder OHV petrol engine
• RPM - max. 3800
