The Hahn & Sohn HDE 9000 SA is a strong and efficient partner for private and professional use. It also serves as a high-quality emergency power system for emergency situations. It will surprise you not only with its performance and long trouble-free performance, but also with its ease of operation.

High quality powerful engine

Inside the generator is a high-quality four-stroke diesel engine with a volume of 490 cm³. It is air-cooled and has an excellent output of 8 kW.

Reliable and long operation

One of the main advantages is the reliability of this power generator. The 15-litre tank allows for long operation without having to refuel. Other features of the generator contribute to its stability and reliability. Therefore, it can be used as a main or emergency power source.

Two switchable modes

Select whether you want to work with classic 230V voltage or with industrial 400V voltage.

The generator offers the possibility to switch between the two modes.

Depending on the mode selected, the resulting power is either 7kW/7KVA at 230V and 7kW/8.75KVA at 400V (Max. Power) or 6kW/6KVA at 230V and 6kW/7.5KVA at 400V (nominal power).

3 Sockets

The power generator is really versatile. It has 3 sockets - 230V (16A), 400V (32A) and 12V (8.3A). Thanks to this, all types of equipment and electronics can be connected without any problems - from powerful machines to sensitive personal electronics.

Automatic Voltage Regulator (AVR)

Thanks to the AVR function, there are no voltage fluctuations during operation. The automatic voltage regulator monitors voltage stability and protects sensitive electronics from damage.

Automatic transfer switch (ATS)

Thanks to this function, the generator starts automatically when the main power supply is interrupted. This makes it a reliable source of emergency power. As soon as the power supply from the public mains is restored, the power generator switches off again.

Oil sensor

An oil sensor signals that the oil tank is almost empty. So you never forget to refill the oil. Timely refilling and regular oil changes ensure a long service life of the generator.

Noise-reducing housing and low-vibration design

The power generator is equipped with a thick sound-absorbing housing that also dampens vibrations. It ensures quiet operation with as little disturbance as possible. Another advantage of the high-quality casing is protection against external damage.

Safety first

The Hahn & Sohn power generator has been tested and certified according to all safety measures and regulations. It also has the latest emission certificates.

Electric starter

Thanks to the installed electric starter, starting the generator is effortless. This makes working with the generator easy and carefree.

Ergonomic control panel

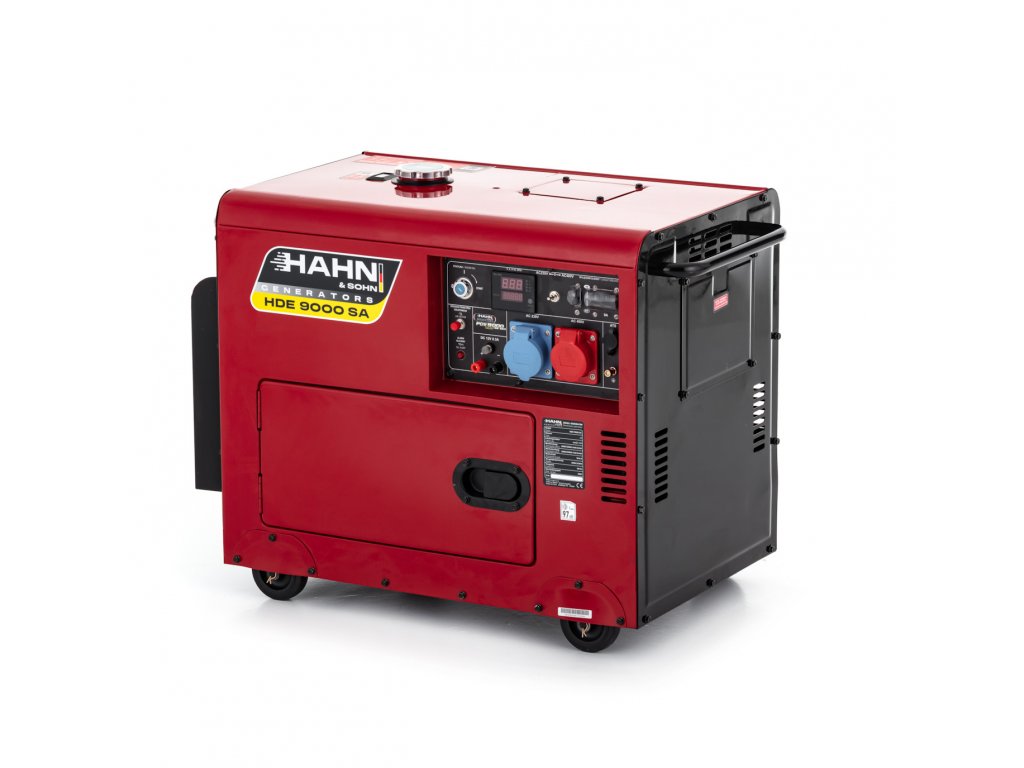

At the front of the generator are: the control panel for starting and adjusting the generator, other sensors and sockets. Everything you need to operate it is in one place and really user-friendly.

Transport

To make it easier to transport this small, powerful power generator, it has been equipped with wheels. They make it easy to move it without assistance when needed.

Equipment

An equipment kit for the power generator is also supplied. You get the necessary tools, connections or a funnel for refilling liquids.
