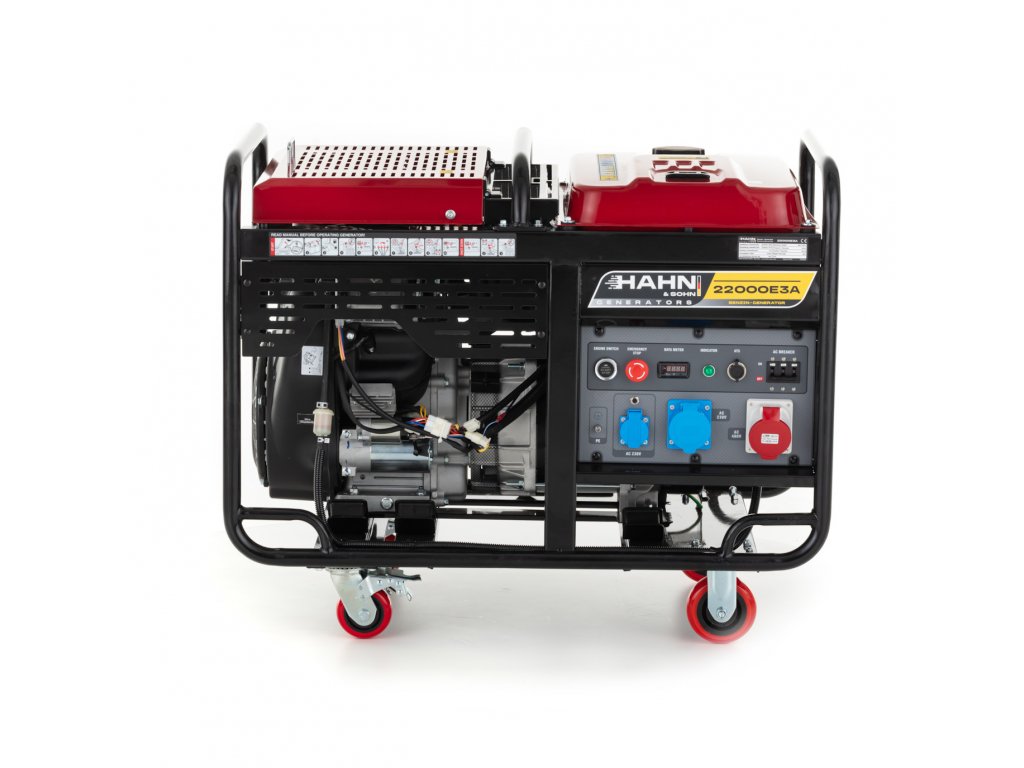

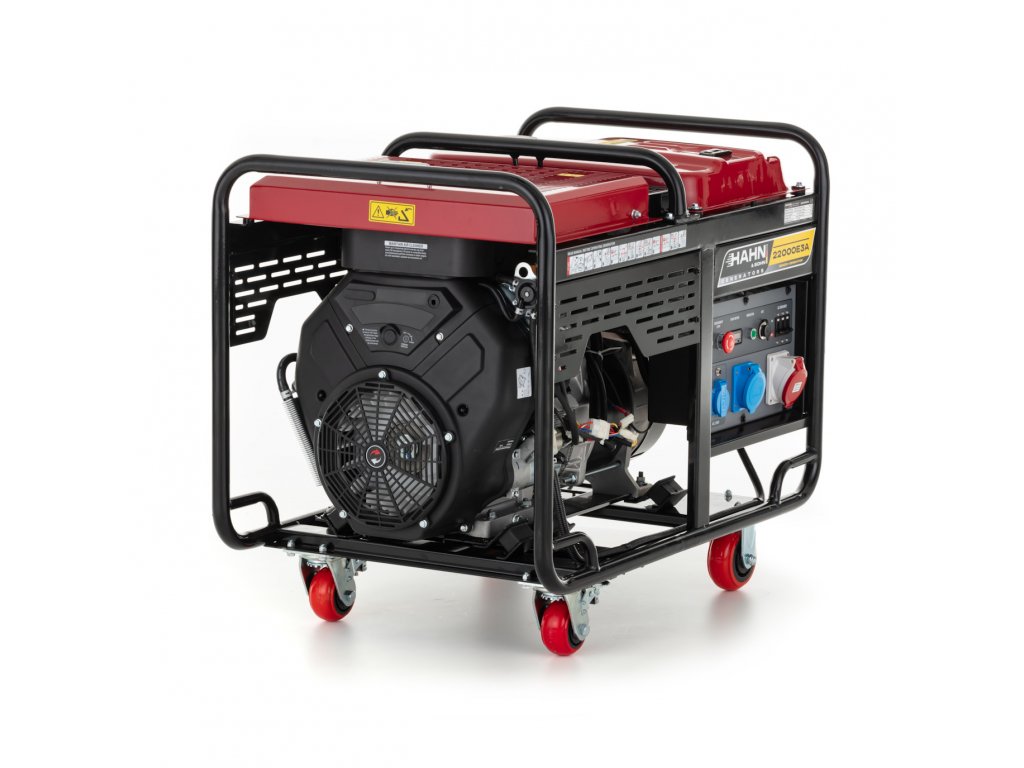

Hahn & Sohn Gasoline Generator HGG22000E3A

Maximum power (230V/400V): 5500W/17000W
Nominal power (230V/400V): 5000W/15000W
Output voltage: 230V/400V
Nominal current: 27.0 A

Availability Skladem (9 pcs)
Code: 7203
4 665,40 € 3 855,70 € excl. VAT 4 665,40 € / 1 pcs
Hahn & Sohn Gasoline Generator HGG22000E3A

Hahn & Sohn Gasoline Generator HGG22000E3A

This petrol generator features a high-performance engine and a large tank with a long service life. It is suitable as a reliable backup power source for home and professional use. The electric starter makes it very easy to operate.



Powerful engine

The power generator is equipped with a high-quality engine. The air-cooled two-cylinder four-stroke engine with a size of 999 cm3 delivers an output of 20 kW. This makes the generator a reliable back-up power source that you can rely on even during demanding operations.



Reliable and long lasting operation

If you are looking for a unit with a long service life, the HGG22000E3A power generator is just what you need. A large 40-litre tank ensures 7 hours of operation without having to refill fuel.



Noise-insulating housing and low-vibration design

Thanks to the high-quality sheet metal housing, the power generator is very quiet. The housing also dampens vibrations, which, together with the low noise level, ensures pleasant and undisturbed operation. The solid cover also protects the power generator from damage.



Electric starter

In addition to the manual starter, the generator is also equipped with an electric starter to ensure easy starting and operation of the unit.



Practical control panel

The generator is controlled via an ergonomic control panel. This allows you to easily switch on and subsequently operate the power generator with the electric starter.



Single-phase and three-phase operation

The generator can be operated both single-phase and three-phase. Single-phase is for 230 V, three-phase for 400 V. Thus, a peak power of 5.5 kW or 17 kW (for 400 V) or a nominal power of 5 kW or 15 kW (for 230 V) can be achieved. This makes the power generator a very versatile and powerful companion.



4 sockets

The Hahn & Sohn HGG22000E3A power generator is equipped with four sockets - 230V (16A), 230V (32A), 400V (32A) and 12V (8.3A) - to which all common appliances can be connected.



Automatic voltage regulator (AVR)

Thanks to the automatic voltage regulator (AVR), there are no voltage fluctuations. This prevents possible damage that could occur to the connected units. Thus, even sensitive or hard-to-start devices can be connected safely.



Easy handling

As the power generator is equipped with practical castors, it is very easy to move.

Operations manual

Additional parameters

Category: Gasoline
Warranty: 5 let
Weight: 213 kg
Hmotnost: 181 - 240kg
Jmenovitý výkon: 13,1 - 15 kW
? Kapacita palivové nádrže: 30,1 - 40 l
Maximální výkon: 15,7 - 17 kW
Napětí: 230/400 V
Startér: Elektrický
Výstupní napětí: 230V/400V
Špičkový výkon (230V/400V): 5,5 kW/17 kW
Jmenovitý výkon (230V/400V): 5 kW/15 kW
Zásuvky: 1x 230V (16A)
, 1x 230V (32A)
, 1x 400V (32A)
, 1x 12V (8,3A)
Jmenovitý proud: 27,0A
Objem nádrže: 40l
Doba provozu: cca 7 hodin
Motor: Benzinový motor Hahn & Sohn
Typ motoru: dvouválcový, 4-taktní, OHV, vzduchem chlazený
Startér: elektrický
Výkon motoru: 20 kW
Zdvihový objem: 999 cm³
Hmotnost: cca 213kg
Rozměry: 1040 x 680 x 858 mm
Počet otáček: 3600/min.
Objem olejové nádrže: 2,5 l
Typ oleje: SAE10W-30 nebo 15W-40
Hmotnost baterie: 10,8 kg
